விவரக்குறிப்புகள்
Cutting Area:6000*2500mm
Cutting Speed:>100m/min
கிராஃபிக் வடிவமைப்பு ஆதரவு: AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
விண்ணப்பம்: லேசர் கட்டிங்
நிபந்தனை: புதிய
Cutting Thickness:Max. 25mm Carbon Steel
CNC அல்லது இல்லை: ஆம்
கூலிங் முறை: நீர் கூலிங்
Control Software:PA8000
தோற்றம் இடம்: அன்ஹூய், சீனா (மெயின்லேண்ட்)
பிராண்ட் பெயர்: ACCURL
Certification:CE, ISO, DNS
உத்தரவாதத்தை: 1 வருடம்
லேசர் மூல: ஜெர்மனி ஐபிஜி ஃபைபர் லேசர்
Laser power:3000W
Working area:6000*2500mm
Control system:PA8000
Software:CNCKAD
Laser head:Precitec Cutting Head
குளிரூட்டும் முறை: நீர் சில்லெர்
பொருட்கள் வெட்டும்: துருப்பிடிக்காத ஸ்டீல் கார்பன் ஸ்டீல் முதலியவை (மெட்டல் லேசர் கட்டிங் மெஷின்)

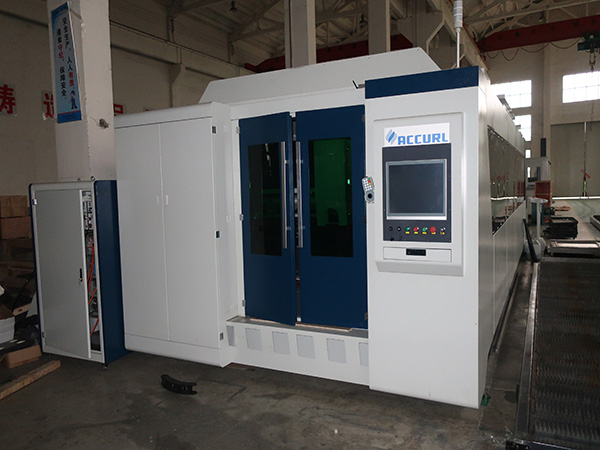

தயாரிப்பு பெயர்: ஃபைபர் லேசர் மெட்டல் கட்டிங் மெஷின்
தயாரிப்பு விவரம்
- Equipped with an advanced international fiber laser generator, a special CNC system for laser cutting, a high-accuracy AC servo system and a high-accuracy gearbox;
- An integral modular structure, a whole bed weldment, heat-aging treatment, machining/forming one time by a high-accuracy machine, high machining accuracy, good stability, integrated smoke suction table and rapid/easy installation;
- Cross rail casted of aerospace aluminum alloy, and high-precise machining/forming performed after inner stress relief through solid solution aging-treatment with good rigidity, light weight and good dynamic properties;
| கட்டமைப்புகளில் | |||
| NO. | பொருள் | Description | |
| 1 | கட்டுப்பாட்டு அமைப்பு | PA8000 Germany, based on Windows system. Easy for operation, and user-friendly interface. Support AI,DXF,PLT, work with international G code. | |
| 2 | மென்பொருள் | CNCKAD, Standard laser version | |
| 3 | லேசர் தலைவர் | PRECITEC Auto-focus Laser Head, with Capacitive sensor | |
| 4 | லேசர் மூல | IPG 3000W, YLR Series, 100000 hours life. | |
| 5 | Rack pinion | Germany TBI | |
| 6 | Guide rails and ball screw | THK,HIWIN Taiwan | |
| 7 | மின்னணு கூறுகள் | Contactor, air switch | SCHNEIDE(France) |
| 8 | Photoelectric switch | TURCK GERMANY | |
| 9 | நியூமேடிக் கூறுகள் | SMC Japan | |
| 10 | Motor and drive | YASKAWA servo motor and drive | |
| 11 | reducer | Stober Germany | |
| 12 | Automatic lubrication system | China brand | |
| 13 | Machine protection | Refractory and high-strenth fabric and fully enclosed enclosure with radiation-proof glazing, IGUS Germany drag chain and wiring protection. | |
| 14 | Machine main construction | JIER, built in-house, 80years experience with heavy machines, hot aging treated steel bed, and finishing, one piece cast Aluminum beam. | |
| 15 | Water chiller system | Tongfei China | |
| 16 | Laser fume extraction system | Maxsun China 7.5KW | |
| 17 | Spare consumable parts | Nozzle Precitec | 5pcs |
| 18 | Protective lens Precitec | 5pcs | |
| 19 | Ceremic ring Precitec | 2pcs | |
| Main parameters | |||
| இல்லை. | Performance index parameter | Note | |
| 1 | Working size(L×W) | 6000mm×2500mm | double exchangable table |
| 2 | X axis stroke | 6020mm | |
| 3 | Y axis stroke | 2520mm | |
| 4 | Z axis stroke | 120 மிமீ | |
| 5 | X,Y,Z axis Positioning accuracy | ±0.03mm/1000mm | |
| 6 | X,Y,Z axis repeat Positioning accuracy | ± 0.02mm | |
| 7 | X,Y,Z axis Maximum linkage speed | >100m/min | |
| 8 | X,Y,Z axis Maximum Acceleration | 1G | |
| 9 | லேசர் மூல | IPG 3000W | IPG, YLS series |
| 10 | இயந்திர எடை | 15000kg | |
| 11 | Working table MAX load | 6000kg | |
| 12 | Line width | 0.1~0.3 mm | |
| 13 | Incision roughness | Ra 3.2—12.5 μm | |
| 14 | Workpiece precision | ±0.1 mm | |
| 15 | Cutting capabilit | 0.5-20mm | கார்பன் எஃகு |
| 0.5-10mm | எஃகு | ||
| 16 | Total installed capacity | >30 KVA | |
| 17 | Power supply rated voltage | 3 phase 380V,50Hz, with transformer | |
அடிக்கடி கேட்கப்படும் கேள்விகள்
Q:How can I choose suitable machine?
A:Please kindy send an inquiry and tell us your material size and thickness. We will advise accordingly.
Q:MOQ?
A:No MOQ limit. If you purchase large quantity, we will be happy to offer big discount.
Q:If I purchase a machine, how can you make it safe while shipping?
A:For fiber laser cutting machine, we can load container in our factory directly.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q: I am not sure if this machine suitable for my work?
A: Don't worry, just tell me your working materials, max working area and cutting thickness, then I will recommend you the most suitable machine for you.
Q:How can I do if the machine goes wrong?
A:If confronted with such problems,online service is offered, you could contact our sales. Also,we offer engineer delivery service. Please contact us asap and don’t try to fix the machine only by yourself . We will response within 12 hours as quick as we can to solve it for you.
